Technical overview

  • Lewelwind system with speed adjustment.
  • Levelwind and side access platform.
  • Designed for road transport.

Options

  • Dwellop supplies CT spools in different sizes, ranging from 168 to 236”.  All spools are supplied with a certified lifting gear.

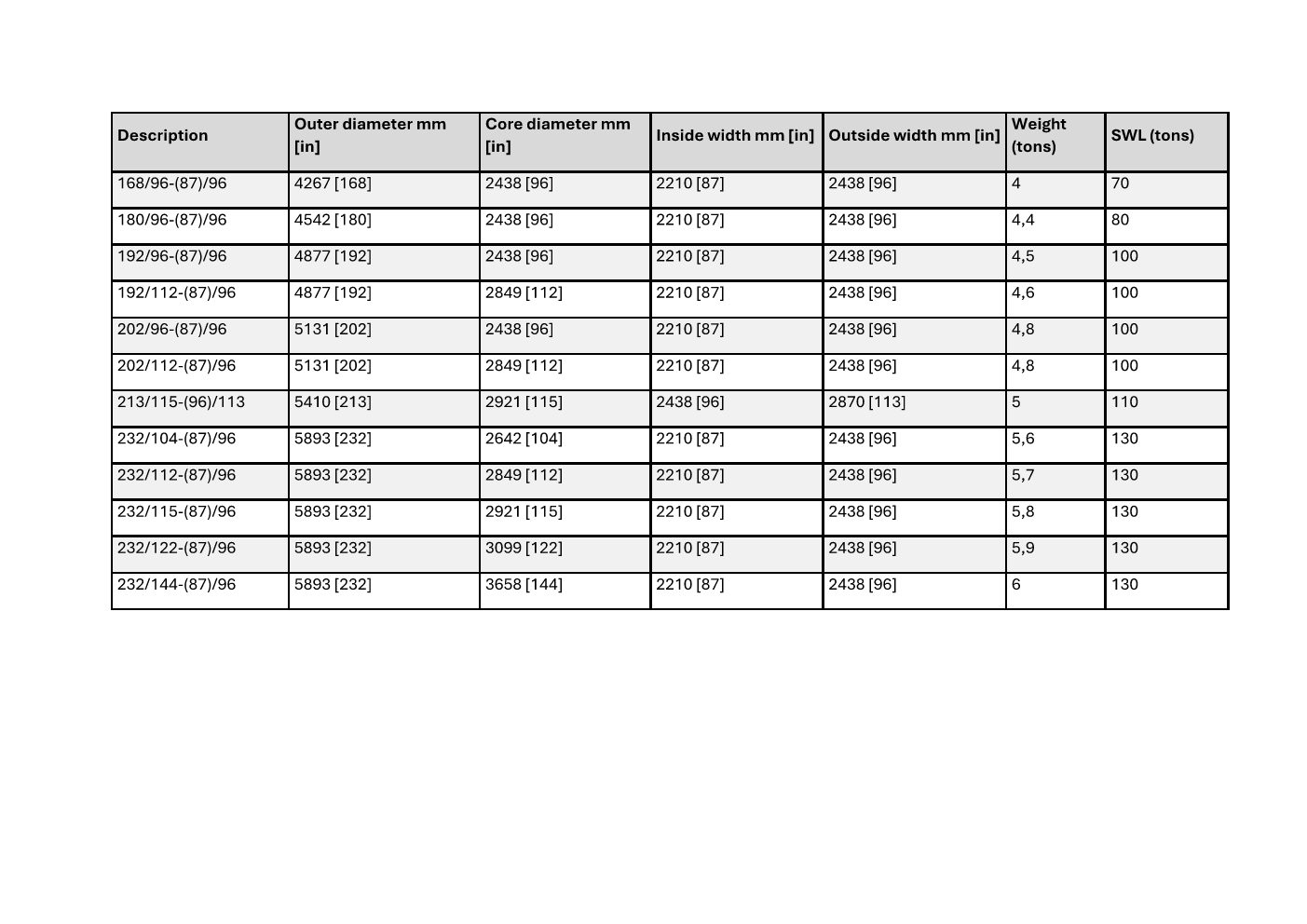

  • The table below is listing the standard dimensions. (Custom builds offered upon request).

All drums can be offered as a Light Weight Drum, where crane capacity is limited. The light weight drum is typically 20% lighter than the standard spool.

  • The spools can be supplied with a transport cradle. This cradle works as a guide when installing spool in Powerstand. Once installed, the cradle works as an adapter frame for positioning the drum in the Powerstand, and the cradle also works as a drip tray during operation.

For additional spool torque requirement, the Reel is offered with a 3rd motor option.

For long string requirements, the Reel can be delivered with a 103″ spool width, allowing up 45000 ft. of 2-3/8 coil.

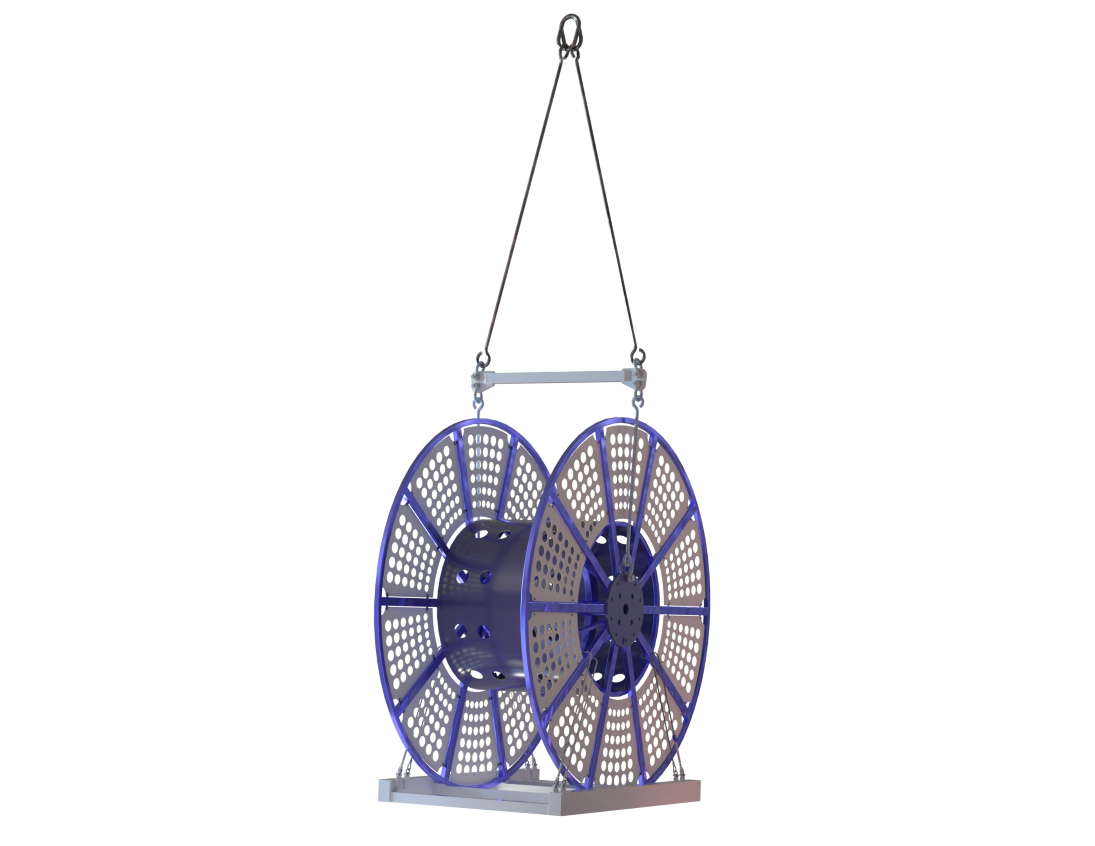

  • Light Weight Drum

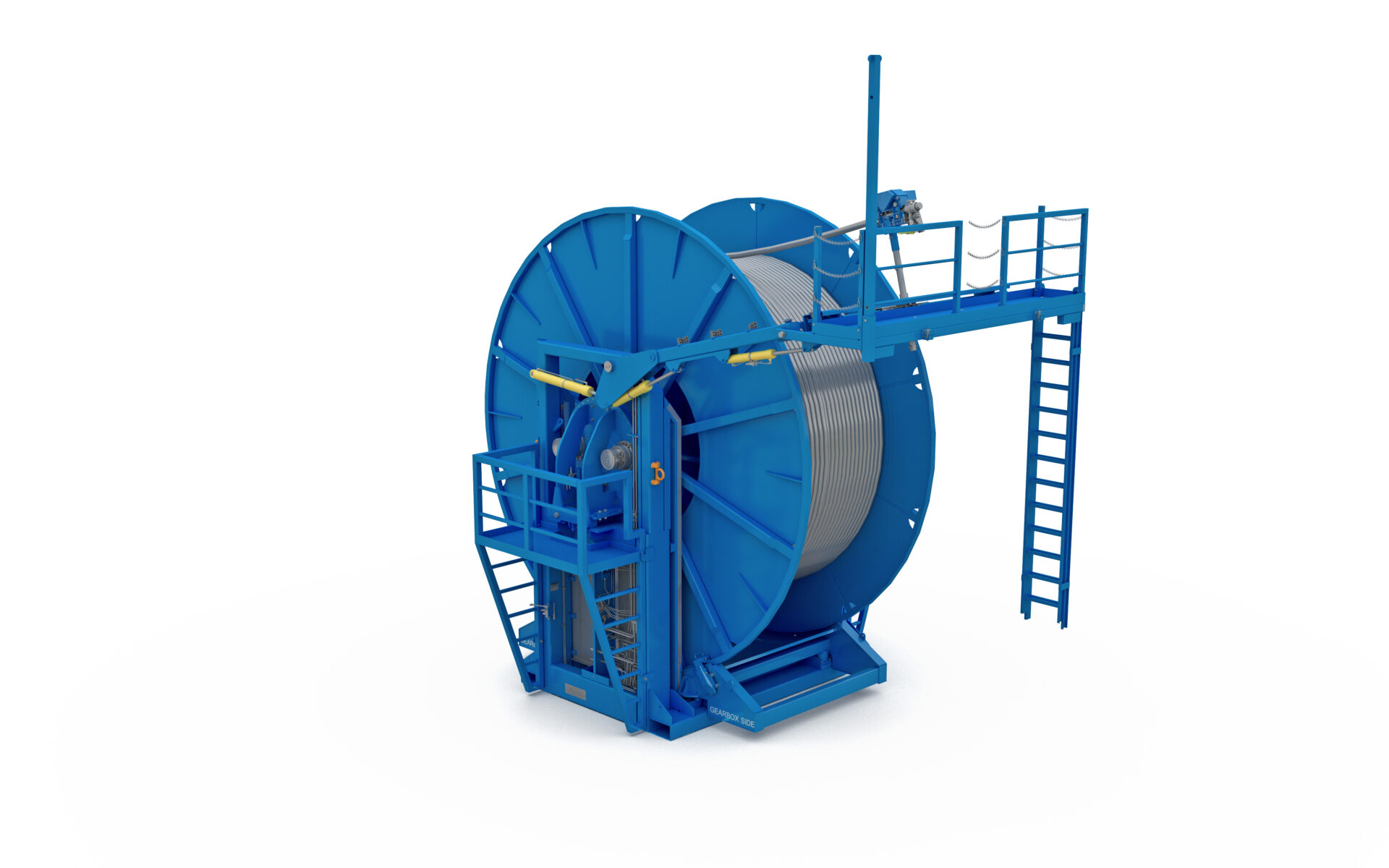

  • Dwellop Reel
