Dwellop offers bespoke solutions for P&A operations, that ranges from simple pulling unit to more advanced rigs with efficient milling capabilities.

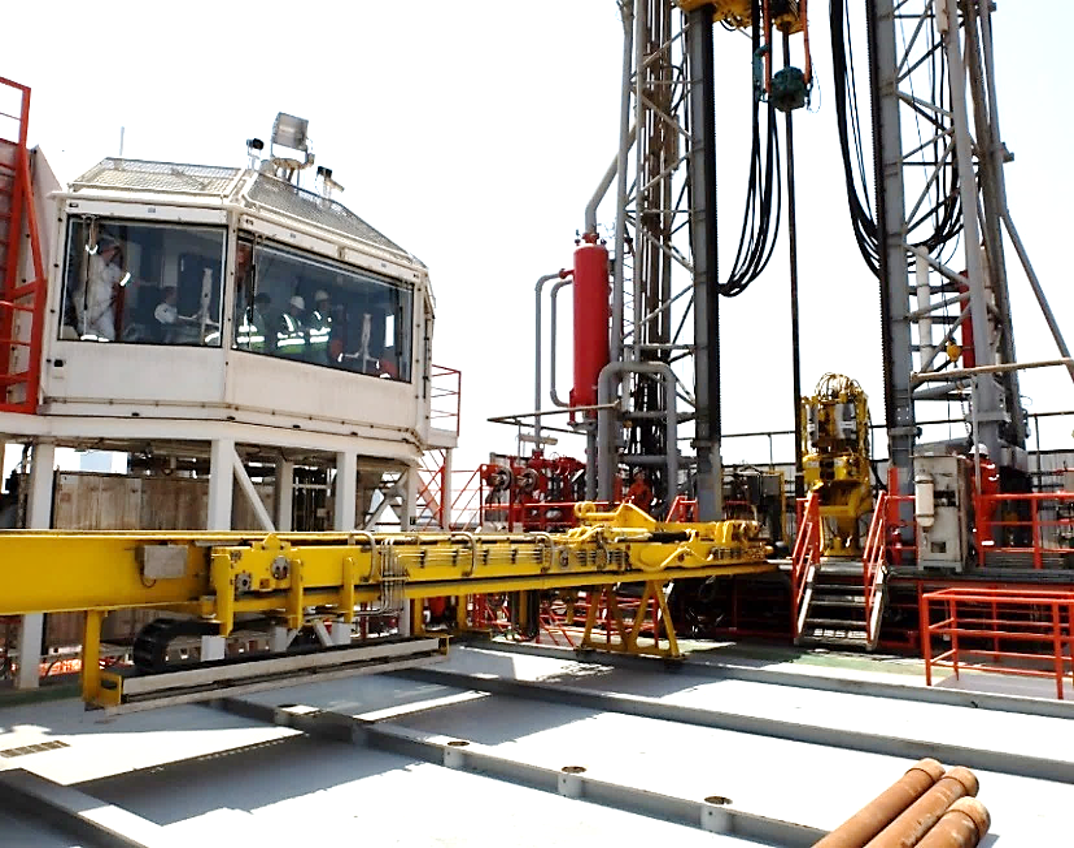

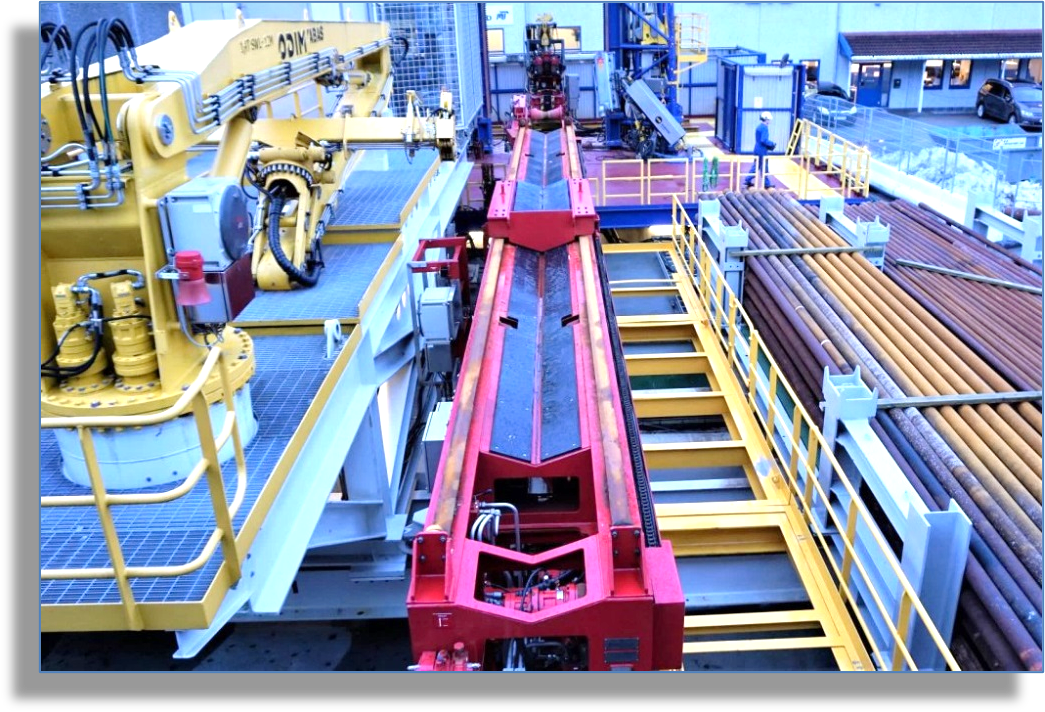

If the P&A campaign requires milling, the preferred will be Dwellop’s Modular Rig with Top Drive. The rig offers capable pull and torque, in addition to efficient swarf handling.
The Rig can be delivered fully Norsok compliant.
Hook load 200-400 ST (Customer dependant)
Top Drive 32000ft/lb (at 180 rpm)
Tripping speed Single R3 1400 ft/h
Auto-driller
Mud pumps 2 x 1000HP (Customer dependant)
Mixing line
Mud pits 1500 bbl (Customer dependant)
Shakers 2 x Super Pool
The rig can be designed according to NORSOK regulations and may also include remote operations to be performed from the drillers cabin
The rig can be operated by a crew of 6 people
P&A: Including cutting and pulling of conductor/casing, setting cement plugs and remove X-mas tree
Light drilling / Side-tracks
ESP change out
Clean out of existing casing/tubing
Milling and cementing operations
Perforation
Wire line work through rig
Coil tubing work through rig
If you have any requirements or need further information, please don’t hesitate to contact us.
